Exposure of Exiguobacterium spp. to dengue vector, Aedes aegypti reduces growth and reproductive fitness

Abstract

Background

Aedes aegypti is a major insect vector because it transmits dreadful viruses as adults that cause disease in humans and other vertebrates. The use of mosquito’s microbiota has shown great potential impacts on vector control and mosquito reproductive competence. The present study aimed to examine the resident bacteria of mosquitoes which are used as a potent range to reduce the A. aegypti fitness. Isolated resident-bacterial strains from blood-fed Aedes species were characterized using gene sequencing and phylogenetic analysis, to assess the inhabitant bacterial strains survival rate in A. aegypti midgut, instar developmental duration, malformation and reproductive competence.

Results

The genetic distinctiveness of isolated bacterial strains belong to the genus Exiguobacterium spp. and further non-redundant nucleotide database search revealed that the species of effective strains were E. aestuarii (MN629357) and E. profundum (MN625885). Exposure of the freshly hatched larvae with these bacteria cell densities extended the developmental duration. For instance, exposure of A. aegypti larva with 0.42 × 10⁸, 0.84 × 10⁸ and 1.68 × 10⁸ cells/mL of E. aestuarii extended the total developmental duration to 11.41, 14.29 and 14.78 days, respectively. It also reduced the fecundity and hatchability of A. aegypti female, with exposure to these bacteria, from 1033.33 eggs/10 females in the control series to 656.67 eggs/10 females.

Conclusions

These present findings indicate that the resident-bacterial strains from blood-fed mosquito not only extend the larval durations but also rendered the A. aegypti females sterile to various extents.

Background

Dengue is an emerging infectious disease in the world and is transmitted through the bite of infected Aedes species. It is regarded as the most crucial vector-borne viral disease globally (Bhatt et al., 2013; Murray et al., 2013; Wu et al., 2007). At present, the dengue vectors are controlled through inhabitant microbes proved to be an efficient approach to control the diseases with specific to the target organisms. For instance, insect midgut microbiota involved in many biological processes including nutrition, digestion, reproduction, development and refractoriness to pathogens (Paul et al., 2014; Valzania et al., 2018). Besides, some resident bacteria mainly influence the physiology of mosquito species; especially induce the sterility and extent mosquito development. In contrast, an elevated amount of bacterial load in the food nourishment sped larval growth and their development in Anopheles (Emami et al., 2017). In A. gambiae, larvae treated with Asaia showed faster development as it took less than 2 days to reach the pupal stage (Mitraka et al., 2013) and also larval midgut bacteria play a vital role in their growth and metamorphosis (Coon et al., 2017).

On the other hand, most studies that explore the sexual behavior of clinical important mosquitoes have compared fetal capability in sterilized and wild-type males (Balestrino et al., 2010; Boyer et al., 2011; Madakacherry et al., 2014). Also, sexual behavioral studies have largely excluded female AIDS ethnicity. The measurement of reproductive behavior and mating events is often excluded. Notably, there are only a limited number of studies on mosquito infertility (Devine et al., 2009). For reducing the vector competence of mosquito, the approach of microbial symbionts plays a novel method to control the spread of arthropod-transmitted pathogens (Cirimotich et al., 2011) and various aspects of genetic manipulated Wolbachia and its role in the suppression of mosquito’s population reviewed (Mishra et al., 2018). This genetic technique depends on releasing a high dose of a male mosquito infected by Wolbachia infected with wild-type males to induce sterility and suppress the mosquito competence (Brelsfoard & Dobson, 2011; Kamtchum-Tatuene et al., 2017). With the exception of Wolbachia, the important interactions between mosquitoes and their associated microbiota have not yet been explored. Most of the studies focused on bacterial diversity and their role. Nevertheless, a common conclusion is that more comprehensive analysis of symbiotic mosquito interactions requires at least functional level. Therefore, the present study has been focused an overview of the diversity of resident-bacterial strains from blood-fed Aedes spp. their potential functions in mosquito reproductive biology and future applications in resident-based mosquito control strategies or in order to reduce the mosquito competence.

Methods

Sample collection

Blood-fed mosquitoes were collected around the residential areas of Shenbhagathoppu (Latitude 9°541′ Longitude 77°559′), Srivilliputtur in Tamilnadu. From each sampling station, outdoor resting adult female mosquitoes were collected at dawn and dusk. The collected mosquitoes were anesthetized using chloroform, and primarily Aedes species was morphologically identified using standard taxonomic key (Barraud, 1934). They were surface sterilized with 70% ethanol for 2 min followed by washing twice in phosphate-buffered saline (PBS). From each site, a total of 10 blood-fed Aedes were microscopically dissected out under sterile conditions and transferred individually to 100 µl of brain heart infusion broth (BHI broth) in 1.5 ml centrifuge tubes and enriched for 4 h at room temperature. Then, an equal volume of 40% glycerol solution was added in each tube and stored in − 20 °C for further studies.

Isolation of bacterial strains

Midgut contents of Aedes ten-fold serially diluted up to 10⁻⁸ dilution in PBS and 100 µl of each dilution was spread on tryptose soya agar (TSA) supplemented with 5% sheep blood and incubated at 30 °C for 48–72 h. The bacterial isolates were grouped based on their colony morphology. Nevertheless, these isolates were grown separately in TSA medium at 30 °C on an orbital shaker (120 rpm) for 24 h. Bacterial cells were diluted to final volumes of × 10⁸, × 10⁷ and × 10⁶ cells/mL and cell densities determined with a hemocytometer. After dilution with sterile water, 30 mL of a given cell density of an isolate was tested against 3rd instar larvae of A. aegypti and any abnormal behavior and deformities of infected larvae were carefully observed. Further, effective colonies with distinct morphological features were selected and sub-cultured on TSA plates until a pure culture was obtained for further analysis.

DNA extraction and PCR amplification of 16S rRNA

Pure bacterial isolates from mosquito midguts were sub-cultured in 5 ml tryptose soya broth (TSB) at 30 °C for 24 h. Cell pellets were suspended in distilled water and lysed using repeated cycles of freezing and thawing, lysozyme and proteinase-K treatment followed by isopropanol precipitation method (Sambrook et al., 2006). Complete 16S rRNA gene in the extracted genomic DNA carried out in 25 μl of PCR-reaction mixture which contains 2 µl of each primer 27F (5′ AGAGTTTGATCCTGGCTCAG 3′) and 1429R (5′ GGTTACCTTGTTACGACTT 3′), 12.5 µl of master mix and 6.5 µl of MilliQ water. The PCR amplifications were performed as per the following steps: The initial denaturation of DNA at 94 °C for 5 min, 35 cycles comprising 1 min denaturation at 94 °C, 1 min annealing at 55 °C, 2 min elongation step at 72 °C followed by a final extension step at 72 °C for 7 min. The amplified gene product in 1.2% Agarose gel was visualized under UV transilluminator (Drancourt et al., 2000).

Sequence and phylogenetic analysis

The amplified gene product was purified using the isolation kit method (Qiagen, Düsseldorf, Germany) at Eurofins Pvt. Ltd, Bangalore. The obtained nucleotide sequence was edited and deposited in NCBI. Further, the nucleotide BLAST was performed to study the phylogenetic status. The phylogenetic tree was constructed using the similar sequences collected from the NCBI and the tree was constructed using MegaX. The comparison was made using the already available nucleotide gene sequence data in NCBI (http://blast.ncbi.nlm.nih.gov/Blast.cgi).

Exiguobacterium survival in A. aegypti midgut

To assess E. aestuarii and E. profundum survival rate in A. aegypti midgut, mosquito larvae were allowed to feed on freshly cultured bacteria with food. The bacteria cultured in the medium as described above and the cell pellet was harvested by centrifugation and mixed with mosquito larval food at different cell densities. A total of 40 mosquitoes were dissected at 2nd and 4th day of post-feeding, and an entire midgut was examined by fluorescence microscopy to detect the resident bacteria like Exiguobacterium and the dissected midguts were observed twice for investigating in the presence of bacteria.

Instar duration and malformation

Freshly hatched I instar larvae of A. aegypti were reared separately in 150 ml of dechlorinated water containing three setup of bacterial densities (cells/mL) of the selected Exiguobacterium spp. Before the exposure of these strains, the culturing method of mosquito was followed as described by Rajagopal and Ilango (2020). The selected cell densities of the bacteria were less than the lethal effect of the respective bacteria for I instar larva. Therefore, the resident bacteria permitted emergence of more than 50% of the ingested larvae. Normal control was also maintained. Three replicates for the control and the different cell densities were maintained. The larvae were provided with dry yeast powder and dog biscuit in the ratio of 3:1. The level of water in the test plastic cups was maintained by adding the required volume of dechlorinated water. After the larvae metamorphosed into pupa, they were transferred to emergence cages and were allowed to emerge. Duration required for the completion of the different instars, number of individuals that suffered malformations, was counted and noted. Growth index (GI) indicates growth regulatory activity of the action of resident bacteria. It was calculated relating to the emergence of Exiguobacterium inhabitant larvae to average developmental period and was expressed in terms of percentage.

Fecundity and hatchability

Fifty freshly hatched larvae of A. aegypti were reared separately in 300 ml of dechlorinated water containing different cell densities of the Exiguobacterium. Triplicates were maintained for control and different cell densities. After the larvae metamorphosed into pupae, they were transferred to emergence cages and were allowed to emerge. Number of males and females that emerged from different cell densities during incubation and control were counted. The ratio between male and female was calculated. The male mosquitoes were provided with 10% sugar solution and females were provided with blood meal from an immobilized rat, kept overnight inside the cage. The cages were covered with wet cloth to maintain constant humidity (85 ± 5%). One small bowl containing water was also kept inside the cage to facilitate oviposition of females. The eggs oviposited by females were removed from the cage next morning. Eggs were counted and allowed to hatch in enamel trays. The number of eggs that successfully hatched into first instar larvae in each concentration was counted. Fecundity was monitored for 25 days and relating fecundity and hatchability of the infected female to those of control female, reduction in fecundity and hatchability due to infection was calculated in percentage. Sterility index (SI) was calculated the formula as described by Saxena et al., (1993)

$${\text{SI}} = 100 - \frac{{\text{Number of eggs in treated/female}}\,\times\,{\text{Hatchability (\%)}}}{{ \text{Numberof eggs in control/female}}\,\times\,{\text{ Hatchability (\%) }}}\times 100.$$

Statistical analysis

Mean of triplicate data of fecundity and hatchability was calculated using standard statistical formula. The significant differences between the different concentrations were determined by regression analysis by using Origin-Pro 8.5 software package.

Results

In the present study, bacterial diversity in the midgut from blood-fed mosquito species was analyzed by using pure culture methods. Before, the blood-fed mosquito samples were collected during the post-monsoon from Shenbhagathoppu, Srivilliputtur range, Tamilnadu, where dengue vector population density was quite high. Characterization of gut bacteria in the mosquito collected from all four sites using a culture-dependent method led to the identification of 41 bacterial isolates and also the number of colonies was increased with increase in incubation duration. A total of 162 colonies were counted in all the petri plates in the selected four samples based on their cultural characteristics. Each bacterial isolate was carefully screened against mosquito larvae of A. aegypti. Preliminary study revealed that two bacterial isolates were very closer and inhabitant to the larvae of A. aegypti; hence, further assays were carried out only with these bacterial isolates. The survival rate for these isolates was also analyzed on TSA, water without nutrient media of which results are depicted in Fig. 1 and are further optimized with different pH, temperature. The isolated strains were further identified and characterized, and the size of gene product was approximately 1500 bp. The phylogenetic and genetic distinctiveness indicated that strains belong to genus, Exiguobacterium. The isolates were also identified at the species level by using BLASTn analysis and the species identified as SZM20—E. aestuarii (Gen bank No: MN629357) and SZL6—E. profundum (Gen bank No: MN625885). The 16S rDNA sequence of these bacterial isolates was aligned with reference strains available in GenBank and used for construction of phylogenetic trees as shown in Fig. 2, revealing the relatedness among the bacteria identified. It also revealed that the isolates of SZM20 sequence indicated a 99.57% similarity with E. aestuarii NR 043204.1. The NJ tree revealed a close relationship between the strains isolated in the present study and NR 043204.1 bacterial strain which was also E. profundum. The SZL6 is 99.58% similarity with E. profundum.

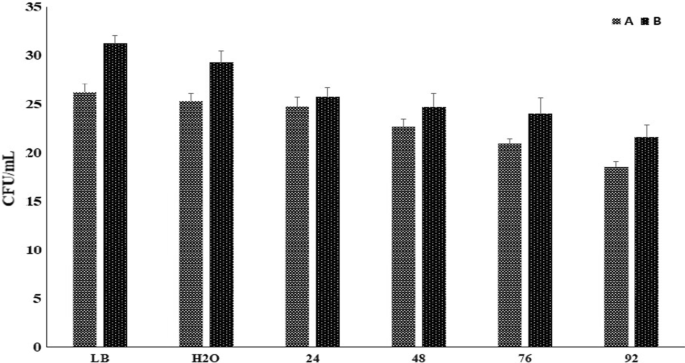

Fig. 1

The viability of bacterial in water. The total CFUs count of bacterial cells (A—E. aestuarii and B—E. profundum) after centrifugation and suspended in liquid media, water and after keeping the resuspended cells in water up to 92 h

Fig. 2

Construction of a neighbor joining phylogenetic tree by MEGA version 10 based on its nearly complete 16S rRNA gene of bacterial strains with branch length of 0.01 revealed distinct groups. Black dot represents the isolated strains E. aestuarii (MN629357) and E. profundum (MN625885)

Under ambient laboratory conditions, A. aegypti required about 11 and 12 days to complete larval development and pupation and emerge as adult. Exposure of the freshly hatched larvae with different cell densities of selected bacteria extended the developmental duration in resident-bacteria-dependent manner. For instance, exposure of A. aegypti larva with 0.42, 0.84 and 1.68 × 10⁸ cells/mL of E. aestuarii extended the total developmental duration to 11.41, 14.29 and 14.78 days, respectively (Table 1). Likewise, the duration required by this mosquito with 0.5, 1.00 and 2.00 × 10⁸ cells/mL of E. profundum was extended to 12.25, 13.79 and 16.52 days. Number of exposed larvae that emerged as adults was inversely proportional to bacterial densities because high density of chosen bacterial strains induces greater larval extension. The ingested E. aestuarii and E. profundum were labeled with reporter protein to identify the densities of gut microbiota of A. aegypti grown under identical environmental conditions in the laboratory. The results showed that there are communities of similar bacteria in the aquatic habitats of organisms during larval development as shown in Fig. 3. A variety of E. aestuarii and E. profundum were observed in A. aegypti gut on 4th day of post-feeding and the number of bacteria in the midgut was 0.31 × 10⁷ and 0.42 × 10⁷ cfu/midgut, respectively. That is the extent of interference with metamorphosis and adult emergence increased with increase in concentration of the selected bacteria. Consequent to the extension of developmental duration and decrease in the percentage of emergence, growth index of A. aegypti larvae decreased markedly. Growth indices of A. aegypti larvae reared in water free from the bacteria were 7.53, and growth index decreased with increase in cell densities of the selected bacteria.

Table 1 Average developmental duration, emergence (%) and growth index of A. aegypti infected with different cell densities (CFU) of Exiguobacterium spp.

Fig. 3

Observation of ingested bacteria, E. aestuarii and E. profundum labeled reporter protein, GFP (green fluorescent protein) in the gut region of III instar larvae of A. aegypti by fluorescence microscopy. Expression of GFP tagged bacterial strains after the ingestion of 24 and 72 h. a and d Control (unfed mosquito), b and c after 24 and 72 h exposure of E. aestuarii, e and f after 24 and 72 h exposure of E. profundum, respectively

On an average, 10 A. aegypti females in the control series deposited solitary eggs containing 988–1085 eggs each in about 25 days after emergence. Average realized fecundity of a female in the control series is 1033.33 eggs/10 females. The fecundity of A. aegypti female exposed with 0.42 and 1.68 × 10⁸ cells/mL of E. aestuarii decreased from 1033.33 eggs/10 females in the control series to 923.33 and 656.67 eggs/10 females (Table 2), whereas the decrease in the hatchability of the female exposed with 0.50 and 2.00 × 10⁸ cells/mL of E. profundum compared with that of control was 89.35% and decreased to 84.83 and 59.67%. Figure 4 shows the relationship between treatment dose and average fecundity of A. aegypti exposed with E. aestuarii. The inverse relationship between the two variables is statistically highly significant (r =  −0.963; N = 15; P < 0.01). Similar significant inverse relationship was also obtained between fecundity and different cell densities of the females exposed with E. profundum. Like fecundity, hatchability of eggs deposited by the females infected with the E. aestuarii and E. profundum also displayed significant inverse relationship with different cell densities. Exposure with E. aestuarii and E. profundum decreased the hatchability to 24.89 and 30.97%, respectively; these decreases were 75.11 and 69.03% less than the hatchability in the respective control series. Consequent to the significant decrease in fecundity of the females exposed with these bacterial strains and decrease in the hatchability of the eggs deposited by them, the strains rendered the A. aegypti females sterile to various extents. Sterility index of A. aegypti linearly increased with different cell densities of resident bacteria. At the highest concentration (2.00 × 10⁸ cells/mL) of E. profundum, sterility index of A. aegypti was 47.37 (Tables 2). Briefly, the results obtained indicate that the selected bacterial strains not only extend the larval durations but also reduce the fecundity and hatchability of A. aegypti and rendered the few which managed to emerge successfully, sterile to a greater extent.

Table 2 Fecundity and hatchability of A. aegypti infected with different cell densities (CFU) of the Exiguobacterium spp.

Fig. 4

a–d Fecundity and percentage of hatchability of A. aegypti as functions of different cell densities of E. aestuarii and E. profundum. The lines were drawn using regression equations shown in the figures. Broken lines indicate 95% fiducial limits

Discussion

In general, microbial diversity in the gut environment is strongly influenced by larval physiology and mosquito behavior. Furthermore, some researchers evidenced the impact of inhabitant bacterial species on their growth and survival of mosquitoes, and the vectors exhibit a different response to bacterial strains and cell densities of the microbes present in water (Souza et al., 2019; Trexler et al., 2003). In this study, selected strains showed persistence in dechlorinated water for up to 120 h. Therefore, we decided to perform larval duration assays by directly inoculating the development of strains in water under sterile conditions. In the present study, it surprisingly observed the extension of larval duration and the induction of morphogenetic defects of larvae inoculated with bacterial cell densities. In this result, E. aestuarii and E. profundum significantly extended the larval durations of A. aegypti at bacterial cell densities of × 10⁷ and × 10⁸ cells/mL.

The present findings agree with the investigations on A. aegypti mosquito using bacterial species isolated from canebrake bamboo (Ponnusamy et al., 2015). Extension of developmental duration, interference with growth and induction of morphogenetic deformities at various stages of development are caused by selected bacterial strains (Rajagopal et al., 2020). Based on this information, the present study could theoretically conclude that infection with resident strains E. aestuarii and E. profundum cause physiological imbalance in the larvae. Furthermore, the selected strains belong to the genus of Exiguobacterium and are non-spore-forming, facultatively anaerobic, gram-positive bacilli and hardly associated with wound infections. Exiguobacterium spp. are widely distributed and they were isolated from different sources, such as water, the environment of food processing plants and rhizosphere of plants (Vishnivetskaya et al., 2009). The clinical characterizations of Exiguobacterium species previously identified from different infectious samples by several workers (Cheng et al., 2013; Kenny et al., 2006; Keynan et al., 2007; Tena et al., 2014). Therefore, the strains may be transmitted from man to mosquitoes through feeding mechanism because the dengue vectors feed on man, which maintain their pathogens within an efficient manner as a mosquito to human transmission cycle (Lambrechts & Failloux, 2012) while undertaken studies on mosquito, Aedes in dechlorinated water, strains have been thoroughly studied under controlled conditions.

E. aestuarii and E. profundum were cell density-dependent negative effect on fecundity of females that emerged from larvae inoculated with the bacteria; in addition to hatchability of these fewer eggs deposited was also very low (Table 2). These findings and observations of present study are supported by few workers. Incompatible insect technique depends on releasing large numbers of Wolbachia-infected male mosquitoes that compete with wild-type males to induce sterility and suppress the mosquito population (Brelsfoard & Dobson, 2011; Zhang et al., 2015). Some optimized bacterial strains that represent the large-scale releases are problematic due to the need for mosquito sex separation at the pupal stage (Zhang et al., 2015). The second assay of our study focused on dengue vector reproductive fitness through assessment of sterility indices. In this study, decrease in fecundity and hatchability of A. aegypti associated with selected bacteria at respective cell densities has been compared with the data reported for different bacteria. For instance, Wolbachia are endosymbiotic bacteria that naturally infect approximately 40% of insect species (Zug & Hammerstein, 2012) and induce a reproductive phenotype in mosquitoes.

Aedes polynesiensis infected with Wolbachia possess bi-directionally and incompatible compared to the naturally infected wild type of mosquitoes was irradiated during the pupal stage and resultant as decreased in fecundity and hatchability of females (Brelsfoard et al., 2009). In contrast, the radiation dose could not affect any negative impact on the fitness of male mosquito, mating competitiveness or to induce CI. For Aedes albopictus, Wolbachia is a milder infection, a double infection and uninfected female A. albopictus. Numerous research has been conducted to establish the minimum pupal irradiation dose need to induce complete infertility in Wolbachia (Zhang et al., 2015). Irradiated A. albopictus, all female strains have decreased fecundity and fertility during irradiated which is inversely proportional to dose. Besides, three A. albopictus strains of the same genetic background (triple-infected, double-infected and uninfected) revealed that the presence of Wolbachia had little effects on host fitness (Zhang et al., 2015). In addition, irradiation dose of female does not have a negative impact on their longevity while the shorter life spans were observed in wild-type males which were irradiated by higher dose (Zhang et al., 2016).

These studies have shown that irradiation was mainly used to diminish the risk of unintentional release of Wolbachia triple-infected female strain during the male release for A. aegypti population inhibition. Recently, stable Wolbachia-infected strain in A. aegypti has been successfully produced by means of embryo microinjection technique (Joubert et al., 2016). In view of the fact that resident bacteria are likely to impact on mosquito host suitability and impact on vector competence, yet research efforts to gain insight into the dynamics and diversity of Aedes-associated bacteria have been limited so far. Therefore, our results further suggested that the direct method of resident bacteria from blood-fed Aedes is more comfortable to infect A. aegypti under controlled conditions. Consequent to the negative effects of A. aegypti associated with bacteria strains on fecundity and hatchability, fertility of the female is very much affected. The bacteria rendered the mosquitoes sterile to various extents.

Conclusions

The resident bacteria tested in the present study against A. aegypti not only inflicted significant larval duration at low cell densities, but also inhabited a greater percentage of the inoculated larvae from emerging as adults, extended their developmental period, induced malformation and rendered their sterile to a greater extent. Resident bacteria are likely to trigger the host suitability and/or fitness, affect the biological hostility and also on vector competence. Thus, our study provides the basis for understanding the resident bacteria from blood-fed Aedes on female fecundity which emerged from larvae infected with these bacteria.
