Evaluation of insecticidal potential of organochemicals on SF9 cell line

Abstract

Background

Organophosphates and Pyrethroids are the most widely used pesticides worldwide and are known to have significant toxicity on the nervous system of the target pest. Assessment for combined toxicity of Organophosphate and Pyrethroid on Sf9 (Spodoptera frugiperda) cells is less explored. The present study demonstrates and compares the two organochemicals whose trade names are Ammo and Profex, for its cytotoxic potential on the insect Sf9 cells. Ammo and Profex were selected as the test chemicals as toxicity of these insecticides at molecular and cellular level is poorly understood.

Results

The results of 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyl-2H-tetrazolium bromide assay demonstrated that Ammo and Profex exhibited significant cytotoxicity to Sf9 cells in a time- and dose-dependent manner. In our study, the IC₅₀ value was obtained by MTT assay and the sub-lethal concentrations (IC₅₀/₂₀-17.5 µg/ml, IC₅₀/₁₀-35 µg/ml, and IC₅₀/₅–70 µg/ml for Ammo and IC₅₀/₂₀-20 µg/ml, IC₅₀/₁₀-40 µg/ml, and IC₅₀/₅-80 µg/ml for Profex) were selected for further tests. Acridine orange/ethidium bromide staining proved the apoptotic cell death on exposure of both the insecticides confirming its toxic potential. Furthermore, antioxidant status was assessed using DCF-DA staining and both the insecticides resulted into an increased reactive oxygen species (ROS) generation. A dose- and time-dependent significant (p < 0.05) alterations in lipid peroxidase (LPO), glutathione (GSH) and catalase (CAT) activity were observed.

Conclusion

The results showed that both Ammo and Profex triggered apoptosis in Sf9 cells through an intrinsic mitochondrial pathway via the generation of ROS. Of the two insecticides, Ammo was found to be more toxic compared to Profex. The present study is important to evaluate the environmental safety and risk factors of Organochemicals’ exposure to crops and livestock.

Background

Organophosphate (OP) insecticides are among the most common class of pesticides that are mainly used to control the insect pest populations. They are the group of insecticides whose key target is to inhibit Acetylcholine esterase (AChE) which is responsible for hydrolysis of Acetylcholine. The OPs phosphorylate the hydroxyl group of a serine residue on AChE in the central nervous system. It has been reported that excessive use of these insecticides in the public health and agriculture leads to environmental pollution causing a number of acute and chronic poisoning events (Lukaszewicz-Hussain, 2010). However, the prolonged use of insecticides has been known to reduce its effectiveness among the target insect pests. Thus, the need to search for novel insecticides with better efficacy or a new mode of action becomes evident.

Nowadays, mixed pesticides are in great demand for agricultural use because of their efficiency, convenience, and rapid actions (Zhou et al., 2011). One of the pesticides widespread in use is the combination of Organophosphate and Pyrethroid due to its low mammalian toxicity, less persistence, and rapid biodegradability in the environment (Singh et al., 2018). In the mixture of OP and Pyrethroid, OP inhibits the detoxification of Pyrethroid and increases the combined toxicity (Iyyadurai et al., 2014). Together, OP and Pyrethroid account for approximately 70% of the world market (Smagghe et al., 2009).

There is an increasing need for rapid and easily interpreted in vitro assays for screening the possible toxicity of pesticides (Eddleston et al., 2008; Papoutsis et al., 2012). The eventual purpose is to achieve an alternative system that allows for rapid testing of insecticides and to enable the accurate prediction of toxic efficacy at the whole animal level (Smagghe et al., 2009). Cell-based systems have proved to be useful for assessing toxicity and specific risk on target organs under chemical exposure, thereby offering high-level amalgamation on relations of chemicals with intact cells (Polláková et al., 2012; Yun et al., 2017). Therefore, cell-lines are considered as the perfect instrument for examining cellular toxicity. Many in vitro studies have demonstrated the toxicological effects of OPs on non-neural cells, which may be through a pathway other than their action on the central nervous system. Sf9 cell line, established initially from the pupal ovarian tissue of S. frugiperda, is an excellent model to study insecticide cytotoxicology and programmed cell death (Zhong et al., 2016).

Two insecticides, namely Ammo, and Profex, were selected in the present study to carry out the comparative assessment for their cytotoxic effects on insect Sf9 cell line. Ammo is a combination of Triazophos and Deltamethrin, and Profex is a combination of Profenofos and Cypermethrin. Cytotoxic effects of Organophosphate and Carbamate insecticides have been reported, such as oxidative stress, alteration of mitochondria function (Ahmed & Zaki, 2009; Maranet al., 2010). Toxic effects of Pyrethroids toward the cells include DNA damage, inhibition of mitochondrial complex I, and induction of reactive oxygen species (ROS) accumulation (Naravaneni & Jamil, 2005; Patel et al., 2007) leading to cell mortality (Yang et al., 2016).

The mechanism by which pesticides cause damage involves multiple reaction pathways (Elhalwagy & Zaki, 2009). Both the increased production of reactive oxygen species and attenuation of the antioxidant barrier of the organism are likely to induce oxidative stress (Lukaszewicz-Hussain, 2010). Furthermore, studies with varying durations of exposure to Organophosphate or Pyrethroid pesticides have postulated that insects have evolved a complex antioxidant mechanism to overcome the toxic effects of ROS (Mittapali et al., 2007; Suh et al., 2010). The antioxidant defense is primarily constituted by the enzymatic actions, which include glutathione peroxidase (GPX), catalase (CAT), superoxide dismutase (SOD), and ascorbate peroxidase (Barbehenn, 2002).

In this context, the present study is designed to evaluate the cytotoxic effects of Ammo and Profex on insect Sf9 cell line. The insecticides were selected as there is a lacuna for its toxic effect on Sf9 cell line and moreover, in vitro model is now considered to be the standard procedure to evaluate the toxic potential of newly synthesized pesticides.

Methods

Cell culture conditions

Sf9 was procured from NCCS, Pune, India, and was cultured in Grace’s insect medium (IML001, Himedia, India) supplemented with 10% FBS (RM1112, Himedia, India), 5 ml insect grace’s medium at 28°–30 °C. The medium was replaced with fresh culture media every 2–3 days.

Cell viability assay

The MTT assay was performed to find out the IC₅₀ value and was based on the procedure described by Yu et al. (2016). In this assay, the yellow tetrazolium salt MTT was used as a substrate and reduced into purple formazan by mitochondrial succinate-dehydrogenase in viable cells only. Sf9 cell suspensions (1 × 10⁶ cells/ml) were seeded onto a 96-well culture plates (100 μL per well). After 24 h of incubation, varying concentration of Ammo (Triazophos 35% + Deltamethrin 1%; Sudarshana company, India) and Profex (Profenofos 40% + Cypermethrin 4%; Nagarjuna company, India) were added (50, 100, 200, 300, 400 and 500 μg/ml) for 24, 48 and 72 h, and 0.1% DMSO was used as the control. Four hours before the assay, 10 μl of MTT (5 mg/ml in PBS) solution (TC191, HiMedia, India) was added to each well. To dissolve formazan crystals, the media in each well was replaced with 100 μl of DMSO (Himedia, India). The optical density was measured using a microplate reader at 570 nm with a reference wavelength of 630 nm.

Cell morphology assessment

For cell morphology, modified protocol of Yang et al. (2016) was followed. Sf9 cells (1.5 × 10⁶ cells/ well) were plated in 6 well plates (TPC6, Himedia, India). After 24 h, cells were treated with the selected test chemicals for 12, 24 and 48 h. Cell morphological characteristics, such as cell shrinkage or swelling, membrane blebbing, were observed using inverted light microscope (Metzler M, India).

Apoptosis analysis by acridine orange/ethidium orange (AO/EB) staining

The dual staining of acridine orange and ethidium bromide was used to measure live cells from apoptotic and necrotic cells (Li et al., 2013). The cells (1 × 10⁵ cells) were harvested and washed three times with PBS (pH 7.4) after being incubated with sub-lethal concentration 17.5, 35 and 70μL (LD, MD, HD) of the two test chemicals for 48 h. Cells were then stained with 20 μl of AO and EB (to a final concentration of 100 μg/ml for both) and incubated for 15 min at 37 °C in dark and washed three times with PBS (pH 7.4). The morphology of the treated cells was examined by fluorescent microscope (Floid cell imaging station (Invitrogen, USA)) with the excitation and emission wavelengths set 300 and 590 nm, respectively.

Intracellular ROS assay

The production of intracellular ROS was measured by oxidation of DCF-DA. Before the use, H2DCF-DA (D6883, Sigma-Aldrich, USA) stock solution was prepared in DMSO under a sterile condition in laminar flow hood and 1 × 10⁵ cells were plated in the six-well plate. Cells were then treated with the sub-lethal concentration—HD, MD, LD for both the chemicals. After 48 h of treatment, the cells were centrifuged at 1000g for 5 min. Then, the cells were washed twice with PBS (pH 7.4). Cells were then incubated with DCFH-DA dye at 37 °C for 30 min to allow the fluorescent probe's diffusion into the cells and its subsequent hydrolysis to non-fluorescence dichlorofluorescein (DCFH) under the action of intracellular esterase. Intracellular ROS generation was measured by fluorescence microscopy (Floid cell imaging station (Invitrogen, USA)) with the excitation and emission wavelengths set 488 and 528 nm, respectively (Yu et al., 2016).

Antioxidant’s activity

ROS antioxidant enzyme activity in Sf9 cells was assessed in order to check the cytotoxic effects of the selected insecticides. The activity of antioxidants such as lipid peroxidase, glutathione-S-transferase and catalase was checked after (48 h) exposure to the sub-lethal concentrations (LD, MD, HD) of Ammo and Profex. Lipid peroxidase (LPO) levels were analyzed using the method of Beuge and Aust (1978). Glutathione levels were analyzed using the method of Beutter et al. (1963). Catalase activity was analyzed using the method of Sinha (1972).

Data analysis

Microsoft excel was used to determine the IC₅₀ values from the dose response curve. Means of antioxidant activity were subjected to analysis of variance (ANOVA) with Minitab software package. Significance was observed at p < 0.05 with the means compared using post hoc Tuckey’s HSD test at p ≤ 0.05.

Results

The cytotoxic effects of Ammo and Profex

The viability of Sf9 cells treated with the increasing concentrations of organophosphates (Ammo and Profex) for 24, 48, and 72 h was assessed by MTT assay. The values obtained from MTT assay of 48 h of treatment with Ammo and Profex were used to find out the percentage (%) cell viability. The results showed that the Organophosphates inhibited cell vitality in a dose- and time-dependent manner at concentrations ranging from 50 to 500 µg/ml (Fig. 1a, b) for both the insecticides. The IC₅₀ value for Ammo treatment at 48 h for Sf9 cells was 350 μg/ml (Fig. 1a), and that for Profex was 400 μg/ml (Fig. 1b). Toxicity bioassays showed that Ammo was more toxic for Sf9 (IC₅₀ = 350 μg/ml) compared to Profex for Sf9 (IC₅₀ = 400 μg/ml). However, to observe the alterations, three sub-lethal concentrations low, medium and high doses for Sf9 were selected for Ammo and Profex respectively (Table 1) for further studies.

Fig. 1

Dose–response curve for the effect of Ammo and Profex on Sf9 cells. Viability of Sf9 cells subjected to varying concentration of Ammo (a) and Profex (b) treatment for 48 h was determined by MTT assay. Results are presented as Mean ± SEM, where n = 3, **p < 0.05 as determined by One-way ANOVA

Table 1 IC₅₀ value and sub-lethal concentrations obtained after 48 h of exposure to Ammo and Profex, where IC₅₀/5 Inhibitory Concentration represents high dose (HD), Inhibitory Concentration IC₅₀/10 represents medium dose (MD) and Inhibitory Concentration IC₅₀/20 represents low dose (LD)

Morphological alteration in Sf9 cells treated with Ammo and Profex

Sub-lethal treatment of Sf9 cells with Ammo and Profex resulted into a distinct alteration in the cell morphology compared to control and was found to be dose and time dependent (Fig. 2a, b). Maximum alterations, such as cell shrinkage and cell fragmentation, were observed at 48 h for both the insecticides.

Fig. 2

Sf9 cell morphology after treatment with Ammo (a) and Profex (b) for 12, 24 and 48 h. Arrow indicates the change in Sf9 cell morphology such as cell shrinkage, fragmentation after 48 h of treatment with HD. Here, C = control, LD = low dose, MD = medium dose and HD = high dose. Bar = 50 µm

AO/EB staining

As maximum morphological alterations were observed at 48 h, the rate of apoptosis on Sf9 cells were analyzed qualitatively as well as quantitatively using AO/EB fluorescent DNA binding dye at 48 h. The mean values of fluorescence recovery are represented in Fig. 3a, where the range of fluorescence is found to increase in time- and dose-dependent manner. The AO/EB staining results obtained are presented in Fig. 3b. The cells stained in green fluorescence represent AO staining while that in red/orange fluorescence exhibits EB staining. Treatment of Ammo and Profex resulted into a dose- and time-dependent alterations compared to control. The early apoptotic cell bodies displayed a bright green nucleus with condensed or fragmented chromatin and the late apoptotic cells characterized by condensed and fragmented orange chromatin. The cells initiating apoptosis also displayed shrinkage, rounding, and blebbing of the nuclear membrane. Of the two insecticides, Sf9 cells treated with Ammo show more significant cytotoxic impacts than Profex.

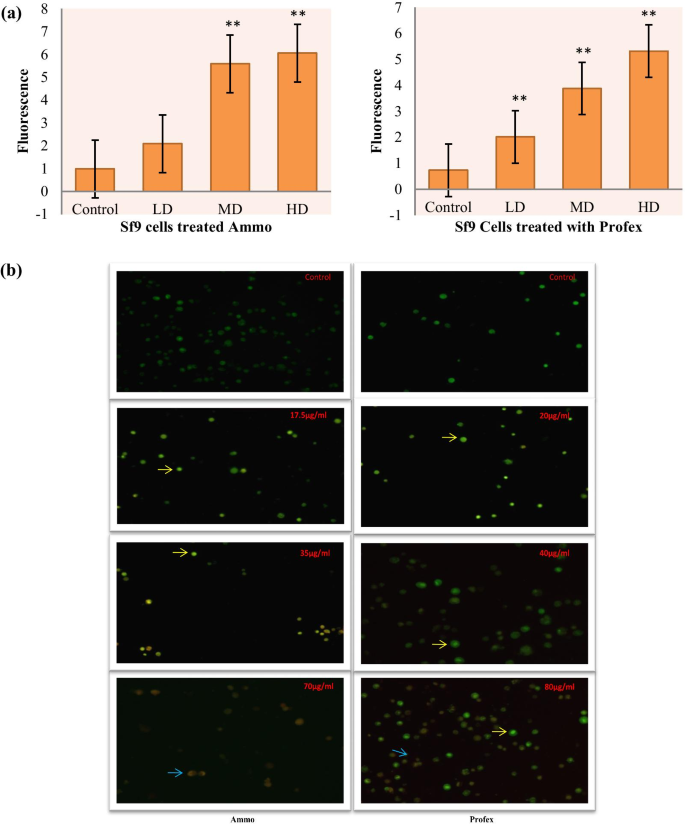

Fig. 3

Results of acridine orange/ethidium bromide assay for Sf9 cells after treatment with sub-lethal concentrations (Low Dose, Medium Dose and High Dose) of Ammo and Profex. a Depicts the fluorescence (mean ± SE) in Sf9 cells after treatment with sub-lethal doses of Ammo and Profex for 48 h and stained with AO/EB. (p < 0.5*, p < 0.05**). b Show Sf9 cell treated with Ammo in an increasing concentrations of LD = 17.5 μg/ml, MD = 35 μg/ml and HD = 70 μg/ml and Profex with LD = 20 μg/ml, MD = 40 μg/ml and HD = 80 μg/ml in comparison to Control. Here, the yellow arrow indicates early apoptotic cells and the blue arrow indicates Late apoptotic cells

Intracellular ROS

The intracellular ROS level was analyzed qualitatively as well as quantitatively by fluorescence microscopy after incubation of Sf9 cells treated with Ammo and Profex with DCFH-DA (Fig. 4a, b). The mean values of fluorescence recovery are represented in Fig. 4a, where the range of green fluorescence is found to increase in a time- and dose-dependent manner. A dose-dependent increase in the ROS was observed in the Sf9 cells exposed to the LD, MD and HD of the test chemicals, suggesting that Ammo and Profex could induce ROS accumulation in Sf9 cells (Fig. 4b). Of the two test chemicals, Ammo exposure resulted into a relatively higher fluorescence than that of Profex.

Fig. 4

Effects of sub-lethal concentrations of Ammo and Profex for the generation of ROS in Sf9 cells were determined by DCFH-DA staining. a Depicts the fluorescence (mean ± SE) in Sf9 cells after treatment with sub-lethal concentrations of Ammo and Profex for 48 h and stained with DCF-DA. (p < 0.5*, p < 0.05**) and b show Sf9 cell treated with Ammo in an increasing concentrations of LD = 17.5 μg/ml, MD = 35 μg/ml and HD = 70 μg/ml and Profex with LD = 20 μg/ml, MD = 40 μg/ml and HD = 80 μg/ml in comparison to control. Green fluorescence represents the intracellular ROS formed. Here, the yellow arrow pointing toward bright green nucleus indicates increased ROS level, cell membrane blebbing, and nuclear fragmentation

Antioxidant’s activity

The values obtained for the antioxidant enzyme assays are given in Table 2. The level of lipid peroxidase and Glutathione was found to increase significantly (p < 0.05) on exposure to sub-lethal concentrations of Ammo and Profex after 48 h (Table 2). On the other hand, the CAT activity was found to decrease in Sf9 cells after exposure to insecticides.

Table 2 Values obtained for the level of LPO, GSH and CAT activity with the sub-lethal concentrations of Ammo and Profex after 48 h of exposure to Ammo and Profex

Discussion

Ammo and Profex, a combination of Organophosphate and Pyrethroid, are the most commonly used insecticides in the agricultural fields (Rice, Wheat, Maize, and Cotton) of India (Singh et al., 2018; Khanday & Dwivedi, 2018). Organophosphates such as Triazophos and Profenofos as single compound are well explored for its toxicity potential, however in combination with Pyrethroids such as Deltamethrin and Cypermethrin are lacking. In the present study, IC₅₀ values obtained by MTT assay revealed that of the two compounds, Ammo (350 µg/ml) was more toxic compared to Profex (400 µg/ml), which might probably be due to Ammo's active components such as Triazophos and Deltamethrin which are reported to be highly toxic by various scientists (Kothalkar et al., 2015; Lal & Jat, 2015; Tomlin, 2009). Earlier studies conducted on relative toxicity of insecticides on insect pest have reported Triazophos to be more toxic compared to other compounds (Abou-Taleb et al., 2010; Balakrishnan, 1998; Bao et al, 2009; Martin et al, 2003). Furthermore, the MTT results revealed a time- and dose-dependent inhibition of Sf9 cell viability. Our results are in agreement with earlier reported work (Saleh et al., 2013) in which the cell growth inhibition rate of Sf9 cells was reported with various OP and Pyrethroids (Additional file 1: Table S1).

Sub-lethal exposure of Ammo and Profex resulted into a dose- and time-dependent morphological alterations such as cell shrinkage, nuclear degradation, increase in cell granularity in the Sf9 cells and was more profound with Ammo (Figs. 2a, b, 3b, 4b). Cell shrinkage and loss of cell sphericity indicate advancement for apoptosis (Zhang et al., 2016), which is accompanied by membrane blebbing, dissipation of the mitochondrial transmembrane potential, Cyt c release, DNA fragmentation and phosphatidylserine translocation (Plenchette et al., 2004; Wang et al., 2014). The altered dose-dependent morphology of the Sf9 cell line thus confirms that they are undergoing apoptosis, which was further authenticated by qualitative estimation using AO/EB staining. AO/EB staining with both the compounds confirmed the Sf9 cell line undergoing Apoptosis. Zhang et al. (2015) demonstrated similar results in Drosophila melanogaster S2 cells undergoing apoptosis on exposure to Fipronil. Thus, it can be concluded that both the insecticides are capable of inducing apoptosis in the Sf9 cells.

Apoptosis is an important homeostatic mechanism in cells that is characterized by cell shrinkage and condensation of nuclear chromatin (Johnson et al., 2000). AO/EB analysis results indicated that the proportions of apoptotic cells increased with increasing concentrations of both the compounds after 48 h of exposure. At the same time, a series of morphological changes including cell shrinkage and condensed and fragmented nuclei were observed. Thus, these preliminary observations suggest that Ammo and Profex induce the death of Sf9 cells through apoptotic pathways. Our results are in agreement with earlier work where various OPs and Pyrethroids have been reported to alter the morphology of cell lines (Karami-Mohajeri & Abdollahi, 2013; Huang et al., 2015; Zhang et al., 2016; Mandi et al., 2020).

Intracellular ROS functions as a trigger of signalling molecules to initiate downstream events regulating cell differentiation, cell cycle, and apoptosis (Yu et al., 2016). However, excessive ROS production would impair and oxidize DNA and consequently result in the dysfunction of these molecules within cells leading to apoptosis (Li-Bo et al., 2012). ROS induces cardiolipin peroxidation in the mitochondrial inner membrane causing cytochrome-c release by breaching hydrostatic interactions (Chen et al., 2010; Huang et al., 2013). Thus, the results obtained in the present research using DCFH-DA dye, which is a colorimetric and fluorimetric probe was used for detection of oxidative species. A consistent dose-dependent increase in the production of ROS with increasing sub-lethal concentrations of both chemicals indicates that the dysfunction of mitochondria is probably inducing cell apoptosis via the generation of ROS. Therefore, to demonstrate the effect of Ammo and Profex in the generation of ROS, we first carried out the qualitative analysis of intracellular ROS. Our results are in agreement with previously reported studies where oxidative stress has been confirmed to involve in pesticide-induced cytotoxicity in SH-5Y5Y cells (Rabideau and Rabideau, 2001); in SF9 cell line (Saleh et al., 2013); in Tn5B1-4 cells (Luan et al., 2017); in UCR-Se-1 (Adamski et al., 2005); in Drosophila S2 cells (Zhang et al., 2015). Similar in vitro studies have shown the activation of intrinsic pathway of apoptosis in a p53 independent way on exposure to chlorella extract likes 2-chloroadenosine, resveratrol (Amin, 2009).

Oxidative stress by increased production of reactive oxygen species has been implicated in the toxicity of many pesticides (Bagchi et al., 1995; El-Demerdash, 2011). To confirm the role of Ammo and Profex in the production of ROS, the antioxidant defense system against the ROS in Sf9 cells was checked. The results revealed a significant increase (p < 0.05) in the GSH activity ensuing from the upregulation of reactive oxygen species on exposure to organochemicals. However, a substantial decrease in the CAT activity was observed in the Sf9 cells due to the overproduction of ROS under the oxidative stress generated by the OP. The probable mechanism by which the OP has expressed such activity is by inhibiting the activity of Sodium/Potassium ATPases, which in turn impairs cellular respiration and leads to an enhanced level of oxygen free radical (Adamski et al., 2005). The results confirm the role of active components such as Triazophos and Profenofos in enhancing the level of reactive oxygen species by inducing toxicity in Sf9 cells. Phosalone has been reported to have a pronounced effect on LPO, resulting in a decreased activity of CAT in vitro (Altuntas et al., 2003). Overproduction of ROS is known to induce oxidative stress unless it gets scavenged with endogenous antioxidants (Amin et al., 2006). Thus, overproduction of ROS would lead to the depletion of antioxidants or to the direct action of OP on the peroxidation reaction. OPs such as chlorpyrifos and diazinon have also proved to increase intracellular levels of ROS and LPO, which is modulated by intracellular GSH (Giordano et al., 2007). Thus in affirmation with the earlier studies, our present study confirms that both the OPs (triazophos and profenofos) irrespective of different active compounds have resulted in the generation of ROS. In addition, the level of LPO estimated in the Sf9 cells shows a significant (p < 0.05) increase in the LPO level, directly proportional to the increase in ROS. Similar results were obtained by Basu where in rat’s hepatic cells were found to induce non-enzymatic and enzymatic lipid peroxidation exposure to CCl4 (Carbon tetrachloride). CCl4 induced toxicity was found to enhance Lipid peroxidation by ROS, antioxidative nutrients, and various other factors that alleviate the biological membranes and cell structure in basal and pathological conditions (Basu, 2003). Lipid peroxidation is thus considered an essential indicator of oxidative damage of cellular components due to excessive generation of ROS, leading to several biological effects ranging from the alteration in signal transduction to gene expression and apoptosis oxidative stress development (Kannan & Jain, 2004).

Conclusion

In our study, both the OPs evoked ROS production within the Sf9 cells, which ultimately prompted cellular damage and triggered cell death. The Sf9 cells undergo ROS-mediated apoptosis. Therefore, it can be concluded that there is an existence of mitochondrial-dependent intrinsic pathway of apoptosis in the Sf9 cell line, prompted by two selected chemicals that are the combination of Organophosphate and Pyrethroid. However, further investigation is required to reveal the mitochondrial mechanisms and regulation of caspase activation during apoptosis. The present study was conducted in order to provide a basic knowledge for toxicity potential of chemicals at cellular level. Also, it is important to evaluate the environmental safety and risk factors of selected chemicals. Results suggest that both chemicals are highly toxic, which may cause detrimental effects on the surrounding environment and the non-target species.
